Quotes - Engineering - SalesSanitary Heat Exchangers for CIP Applications
CIP processes demand robust, hygienic heat exchangers optimized for automated cleaning cycles using hot water, caustics, acids, and sanitizers at high velocities without disassembly. Designs feature polished 316L stainless steel, full drainability, crevice-free construction, and sanitary fittings to prevent contamination. Plate-and-frame provide high turbulence for effective residue removal, shell-and-tube handle high pressures and viscous flows, tube-in-tube suit particulate media, and scraped surface manage heavy fouling—all compliant with 3-A standards for extended run times, minimal maintenance, and superior hygiene.
Applications
- Food & Beverage CIP: Removes proteins, fats, and sugars from processing lines with alkaline/acid cycles, ensuring zero cross-contamination.
- Pharmaceutical Sanitization: Supports WFI heating and CIP for sterile equipment, meeting strict purity and validation requirements.
- Dairy Processing Lines: Cleans pasteurizers, evaporators, and fillers of milk residues, maintaining 3-A compliance.
- High-Fouling Systems: Scraped surface and wide-gap designs handle viscous or particulate CIP duties without plugging.
- Automated Cleaning Cycles: High-velocity turbulent flow ensures complete removal of scale, deposits, and microbes.
Plate & Frame Exchangers
High-Turbulence CIP Cleaning
- Compact & Efficient Design
- Easy Inspection & Maintenance
- 3-A Compliant, CIP Optimized

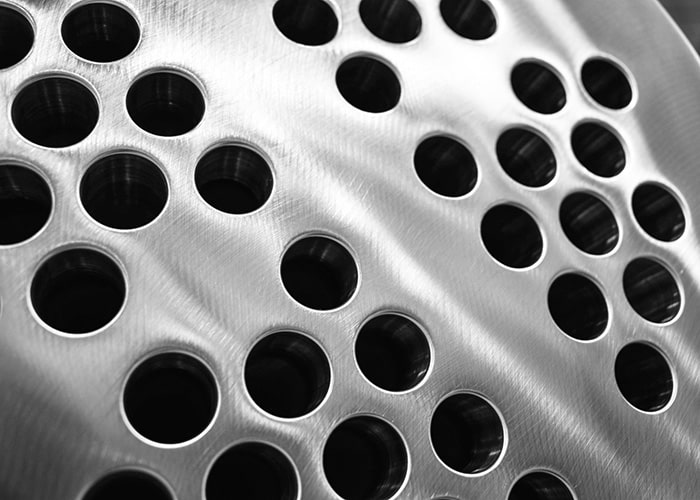

Shell & Tube Exchangers
Robust High-Pressure CIP
- Full Drainability
- Double Tubesheet Options
- Sanitary Tri-Clamp Fittings
Tube-in-Tube Exchangers
Gentle for Particulate CIP
- Coaxial Design
- Low Shear & Fouling
- Fully CIP & 3-A Compliant
The Benefits of CIP Heat Exchangers
CIP heat exchangers enable automated, thorough cleaning without disassembly, dramatically reducing downtime, labor costs, and contamination risks across hygienic industries such as food, dairy, beverage, and pharmaceutical processing. Constructed from high-grade polished 316L stainless steel, these units feature crevice-free, fully drainable designs with sanitary tri-clamp connections and smooth surfaces (often 32 Ra or better) that prevent bacterial harborage and biofilm formation while ensuring complete drainage to eliminate standing liquids.
They support high-velocity turbulent flow during CIP cycles—using alkaline, acid, and sanitizer solutions at elevated temperatures—to effectively remove proteins, fats, sugars, mineral scale (e.g., calcium deposits), and microbial contaminants. This results in superior hygiene, consistent product quality, and full compliance with rigorous 3-A Sanitary Standards and FDA regulations, providing verifiable cleanability and validation for regulatory audits.
By integrating seamlessly with automated CIP systems, these exchangers minimize human error, enhance repeatability, and extend equipment lifespan through reduced fouling and corrosion. High-efficiency designs (particularly plate-and-frame for compact, high-turbulence performance and shell-and-tube for robust high-pressure duties) optimize energy use via precise temperature control and heat recovery, lowering operational costs while maintaining process reliability.
Additional advantages include easy inspection and maintenance, adaptability to various viscosities and particulates (via wide-gap or scraped-surface options), and prevention of cross-contamination—critical for sensitive applications like WFI heating, dairy pasteurization, and sterile pharmaceutical production. Overall, CIP heat exchangers deliver faster turnaround times between batches, safer products, minimized microbial risks, and sustainable, cost-effective operations that support long production runs and superior regulatory compliance in demanding hygienic environments.
